Контроллеры / ControlCenter

CC-1D

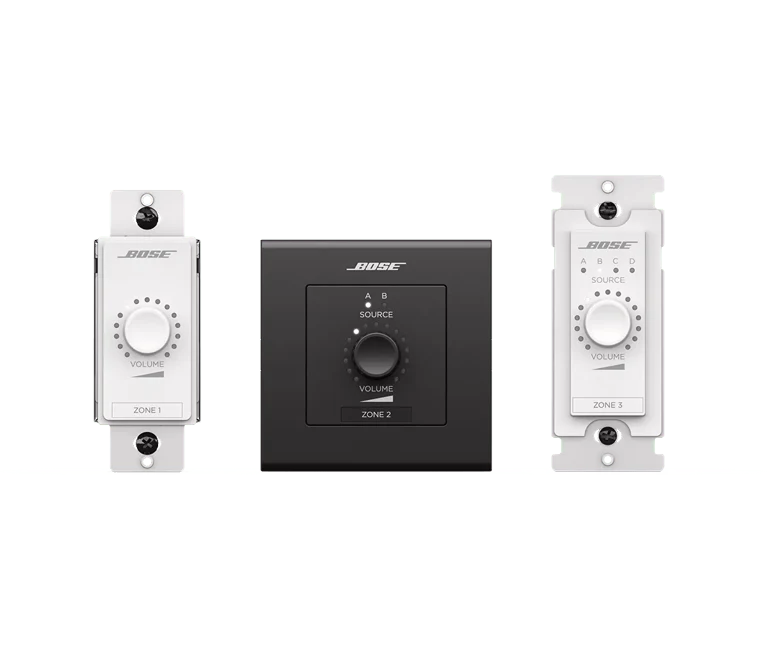

Name: ControlCenter CC-1D/CC-2D/CC-3D digital zone controllers
Brand: Bose Professional

ControlCenter CC-1D/CC-2D/CC-3D digital zone controllers

Цифровой контроллер для управления аудиосистемой.

Особенности

Характеристики производителя
Maximum Controller Quantity	16 per CSP processor, 32 per ControlSpace network
Разъёмы	(1) RJ-45
Power Range	Power over Ethernet (PoE) required
Controls, Front Panel	(1) volume/source selection/mute knob (rotary/push)
LED Status Indicators	(1) volume level LED ring, (2) source selection LEDs (CC-2D), (4) source selection LEDs (CC-3D)
Цвета	Black, white
Suspension/Mounting	1-gang electrical box (North America, Europe, Japan)
Рабочая температура	0 °C to 40 °C (32 °F to 104 °F)
Размеры (В × Ш × Г)	4.1 in × 1.8 in × 1.8 in (105 mm × 40 mm × 46 mm), North America / 3.4 in × 3.4 in × 1.7 in (86 mm × 86 mm × 43 mm), Europe / 4.3 in × 1.7 in × 1.9 in (110 mm × 42 mm × 48 mm), Japan
Масса нетто	0.2 lb (0.1 kg), North America / 0.2 lb (0.1 kg), Europe / 0.2 lb (0.1 kg), Japan
