EX-4ML

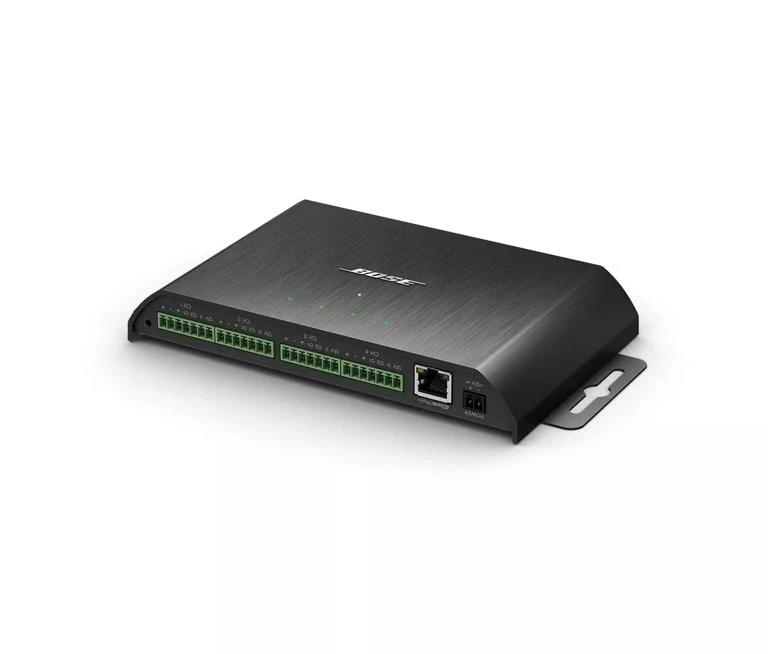

Name: ControlSpace EX-4ML microphone/GPIO Dante endpoint
Brand: Bose Professional

ControlSpace EX-4ML microphone/GPIO Dante endpoint

Аудиоинтерфейс ControlSpace EX.

Особенности

Характеристики производителя
Frequency Response	20 Hz – 20 kHz (±1 dB)
THD+N	< 0.01% at any gain setting, input signal 3 dB below maximum
Входные каналы	4 balanced, mic/line
Разъёмы	(4) 7-pin Euroblock, 3.81 mm, detachable
Equivalent Input Noise	-115 dBu at +45 dB gain
Sensitivity Options	0 dB, +15 dB, +30 dB, +45 dB, software-selectable
Input Impedance	> 1.8 kΩ at any gain setting
Maximum Input Level	+8 dBu at 0 dB gain
Фантомное питание	48 VDC, software-selectable per input
Разъёмы (2)	(1) RJ-45 Dante in / (1) RJ-45 Dante out
Inputs (Control)	(4) general-purpose (1 per audio input), 7-pin Euroblock, 3.81 mm
Outputs (Control)	(8) general-purpose (2 per audio input), 7-pin Euroblock, 3.81 mm
Разъёмы (3)	(2) Euroblock, 2 pins, 3.81 mm
Power Range	12 VDC, daisy-chainable
Power Range (2)	12 VDC, 200 mA
Потребление мощности	4.3 W + 1 W phantom power (if used)
Software Applications	ControlSpace Designer 5.0 or later (Windows)
LED Status Indicators	(1) power LED, (4) input signal status LEDs
Цвета	Black
Suspension/Mounting	(2) mounting tabs
Рабочая температура	0 °C to 40 °C (32 °F to 104 °F)
Размеры (В × Ш × Г)	1.1 in × 8.4 in × 4.4 in (29 mm × 213 mm × 112 mm)
