EX-440C

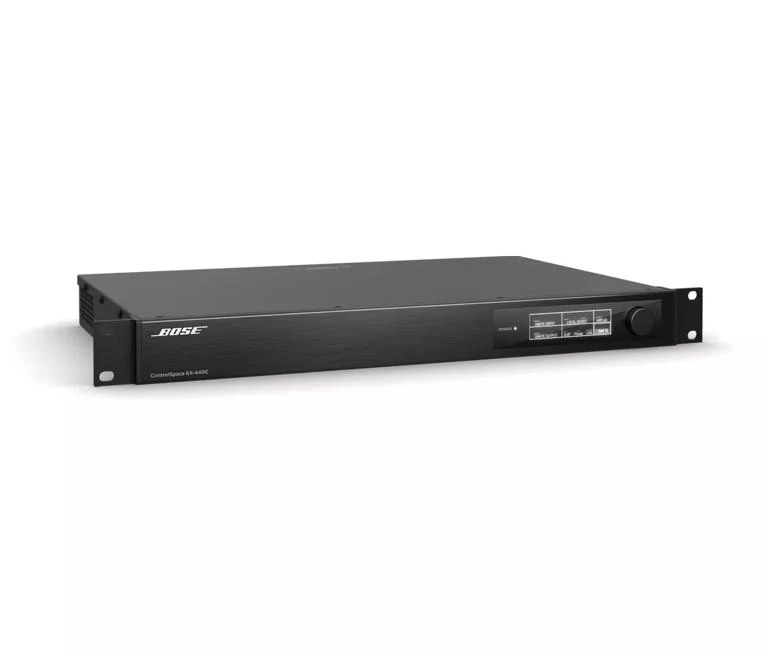

Name: ControlSpace EX-440C conferencing sound processor
Brand: Bose Professional

ControlSpace EX-440C conferencing sound processor

Аудиопроцессор для конференц-систем.

Обсудить проект

Особенности

Каналы: 8
Входные каналы: 4 balanced, mic/line
Разъёмы: (1) 6-pin Euroblock, 3.81 mm, detachable
Equivalent Input Noise: -118 dB at 44 dB gain

Характеристики

Характеристики производителя
Channel Separation (Crosstalk)	< -105 dB at +4 dBu, 1 kHz input signal
Dynamic Range	> 115 dB, A-weighted, 20 Hz – 18 kHz, analog input to analog output
Frequency Response	18 Hz – 20 kHz (+0.8 dB/-0.2 dB), 1 kHz reference
THD+N	< 0.003% at +4 dBu (A-weighted, 20 Hz – 18 kHz) / < 0.01% at +44 dBu (A-weighted, 20 Hz – 18 kHz)
Каналы	8
Latency	50 ms
Noise Reduction	32 dB
Входные каналы	4 balanced, mic/line
Разъёмы	(1) 6-pin Euroblock, 3.81 mm, detachable
Equivalent Input Noise	-118 dB at 44 dB gain
Sensitivity Options	0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB
Input Impedance	12 kΩ at 1 kHz, with or without phantom power
Maximum Input Level	+24 dBu
Фантомное питание	48 VDC, 10 mA, software-selectable per input
Каналы (2)	16 Dante in × 16 Dante out, primary/secondary / 4 AmpLink out
Разъёмы (2)	(2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out
Каналы (3)	4 balanced, line
Разъёмы (3)	(2) 6-pin Euroblock, 3.81 mm
Maximum Output Level	+24 dBu
Output Impedance	200 Ω
Safety	UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition), UL62368-1 (2nd edition), CAN/CSA-C22.2 No. 62368-1-14 (2nd edition), IEC/EN 62368-1 (2nd edition)
EN 54-24 Certified	No
Inputs (Control)	(1) analog/digital, 2-pin Euroblock, 3.81 mm / (1) serial RS-232, 3-pin Euroblock, 3.81 mm
Voltage Range, Analog	0 V – 3.3 V (5 V maximum)
Digital Input Voltage	0 V – 3.3 V (1.6 V threshold)
USB	Micro-B type, stereo in/out, HID support
Mains Connector	IEC 60320-C14 inlet
Напряжение питания	85–264 VAC, 50/60 Hz
Потребление мощности	35 W typical at 104 °F (40 °C) ambient
Power Dissipation	60 W (205 BTU/hr, 52 kcal/hr)
Software Applications	ControlSpace Designer 5.5 or later (Windows)
Computer Interface Connection	RJ-45 (Dante), through network router or switch
Display	256 × 64 OLED
LED Status Indicators	(1) power/status LED
Audio Latency	1.05 ms, analog input to analog output without AEC
Maximum Calculation	3.6 GIPS / 2.7 GFLOPS
Signal Processor/CPU	32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor
Sample Rate / Bit Depth	48 kHz / 24-bit
Цвета	Black
Suspension/Mounting	Standard rack ears
Рабочая температура	0 °C to 40 °C (32 °F to 104 °F)
Размеры (В × Ш × Г)	1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)
Масса нетто	7.1 lb (3.2 kg)
