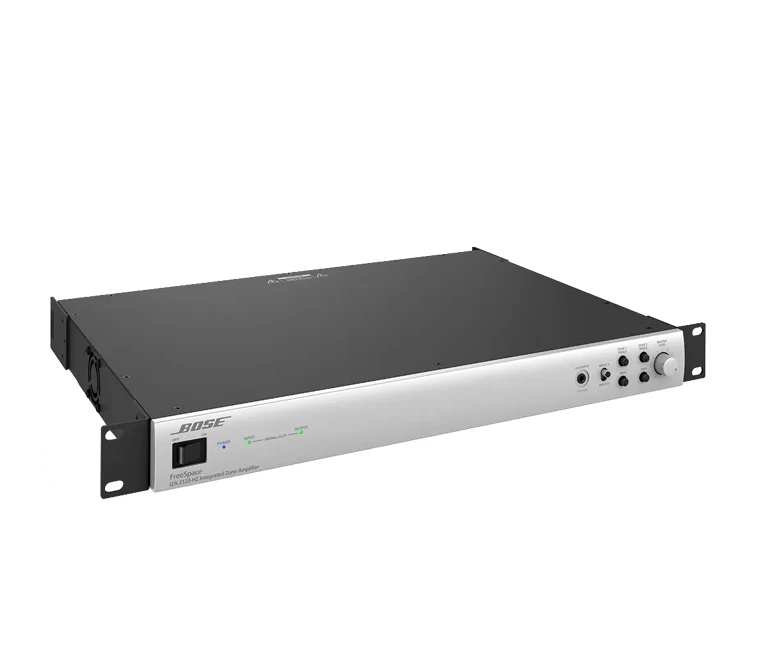

FreeSpace IZA 2120-HZ

Name: FreeSpace IZA 2120-HZ integrated zone amplifier
Brand: Bose Professional

FreeSpace IZA 2120-HZ integrated zone amplifier

Микшер-усилитель для профессиональной аудиосистемы.

Обсудить проект

Особенности

Входные каналы: 2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
Разъёмы: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
Input Impedance: 20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
Input Range: -8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary

Характеристики

Характеристики производителя
Channel Separation (Crosstalk)	≤ -58 dBu below rated power, 1 kHz
Dynamic Range	88 dB
Frequency Response	55 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
Number of Channels	2
Power Class	Class D
Rated Power, Symmetrical	120 W per channel at 70V, 100V
THD+N	0.3% at rated power
Adjustment Range	0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary
Входные каналы	2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
Разъёмы	(2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
Input Impedance	20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
Input Range	-8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary
Maximum Input Level	22 dBu, line / 12 dBu, page / -1 dBu, auxiliary
Nominal Input Level	4 dBu, line / -38 dBu, page / -8 dBu, auxiliary
Sensitivity	-8 dBu, line / -3 dBu, auxiliary / N/A, page
Каналы	2
Разъёмы (2)	(2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level	2 × 120 W at 70V, 100V / 2 dBu (auxiliary)
Output Impedance	N/A (amplifier) / 400 Ω (auxiliary)
Current Draw, Inrush	6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz
Mains Connector	IEC C14 inlet
Напряжение питания	100–240 VAC (±10%), 50/60 Hz
Protections	High temperature, output short circuit, excessively low/high AC line voltage
Потребление мощности	26 W standby, 300 W maximum
Controls, Front Panel	(1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob
Controls, Rear Panel	Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2)
LED Status Indicators	(1) power LED, (1) input signal/clip LED, (1) output signal/clip LED
Audio Latency	10.4 ms (analog input to analog output)
Processing Functions	Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
Размеры (В × Ш × Г)	1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm)
Масса нетто	9.0 lb (4.1 kg)
